ERECTION ANCHOR

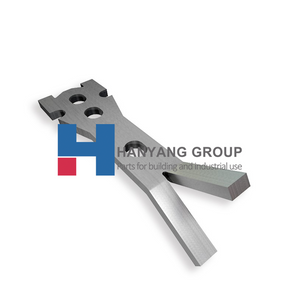

Erection anchor, one-sided
Erection anchors one-sided are constructed for lifting, transportation and handling of precast elements and slabs.
The one sided erection anchor gives the option to lift the element in to directions and tipping panels from horizontal to vertical position.
The one sided erection anchors are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.The one sided erection anchros meet the requirements for safe lifting and handling of concrete elements.
Surface treatment: plain, hot dip galvanized, electro galvanised or A4 Stainless steel
Material: S355J2 or A4 Stainless steel
All items are:
- CE Marked
- With traceability no
- Delivered with 3.1 certificate
- Can be delivered as private label
Product specifications
| LOAD GROUP | L | W | T | L1 |
|---|---|---|---|---|
| 1.4 T | 200 mm | 40 mm | 6 mm | 42.5 mm |
| 2.5 T | 230 mm | 40 mm | 10 mm | 42.50 mm |
| 4.0 T | 270 mm | 55 mm | 12 mm | 50.5 mm |
| 5.0 T | 290 mm | 55 mm | 15 mm | 50.50 mm |
| 7.5 T | 320 mm | 80 mm | 15 mm | 78 mm |
| 10.0 T | 390 mm | 80 mm | 20 mm | 78 mm |
| 12.5 T | 500 mm | 115 mm | 20 mm | 78 mm |
| 17.0 T | 500 mm | 115 mm | 25 mm | 88.5 mm |
| 22.0 T | 500 mm | 115 mm | 30 mm | 88.5 mm |
